175+ nitrous system. 2500+ Stall with lower gears and headers.

(No reviews yet) Write a Review
UPC:
00036584081456
Availability:
This part ships direct from the manufacturer, lead times, stock and shipping may vary.
Weight:
27.50 LBS
$1,543.82

#SAVETHEFULLSIZEJEEP

A Portion Of The Proceeds From Your Purchase Supports The Development & Reproduction Of High Quality 1963-1991 Restoration Parts.

175+ nitrous system. 2500+ Stall with lower gears and headers.

175+ nitrous system. 2500+ Stall with lower gears and headers.

$1,543.82

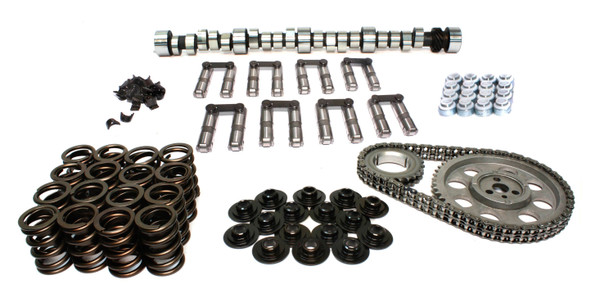

K-KIT - Complete Kit Includes: Camshaft, Lifters, Valve Springs, Retainers, Valve Locks, Valve Stem Seals, Timing Chain Set, Assembly Lube (in flat tappet applications), Decals and Instructions.

Installation Instructions

Installation Instructions



This Part Fits:

YearMakeModelSubmodel
1968-1971JeepJ-100Base
1969-1971JeepJ-2500Base
1969-1971JeepJ-2600Base
1969-1970JeepJ-2700Base
1969-1970JeepJ-3500Base
1969-1970JeepJ-3600Base
1969-1970JeepJ-3700Base
1969-1971JeepJ-3800Base
1968-1971JeepWagoneerBase


Advertised Exhaust Duration315
Advertised Intake Duration288
ApplicationsFits Chevrolet GEN 1 Small Blocks including the 262, 265, 267, 283, 302, 305, 307, 327, 350 and 400. Does not fit LT1/LT4, or factory roller Small Blocks built from 1985 and newer. GM gradually added roller camshafts to 305's and 350's from the mid 80's forward. Camaros/Firebirds/Corvettes received the roller cams early, but many trucks and SUV's had flat tappet cams until the mid 90's. Remove the intake or timing cover to confirm whether the block is a factory roller or flat tappet. Does not fit the LS1, LS2, LS3 or any LS-based 4.8, 5.3, 5.7, 6.0 and 6.2. 1955-1957 Chevrolet 265 engines require a groove on the 5th cam journal for oiling. Contact us for more information.
Assembly Lubricant IncludedNo
Basic Operating RPM Range2,400-6,500
C.A.R.B. E.O. NumberN/A
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?No
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?Yes, but must be a race/competition only vehicle.
C.A.R.B. Exemption ReasonN/A
California Proposition 65WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
Cam TypeHydraulic Roller
Camshaft Gear Attachment3-Bolt
Camshaft MaterialAustempered Ductile Iron
Camshaft SeriesNitrous HP
Description175+ nitrous system. 2500+ Stall with lower gears and headers.
Engine FamilyChevrolet 262-400 c.i. 8 Cylinder (1958-1998)
Exhaust Duration at .050 inch Lift248
Exhaust Valve Lift0.54
Gaskets IncludedNo
Intake Duration at .050 Inch Lift236
Intake Valve Lift0.52
Kit TypeK-Kit - Complete Kit
Lifter TypeHydraulic Roller
Lifters IncludedYes
Lobe Separation113
UsageStreet/Strip
Valve Springs IncludedYes
