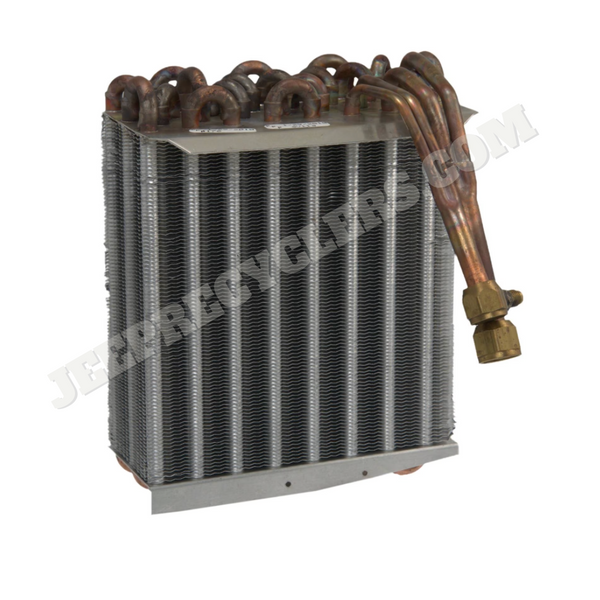

1974-1985 A/C Evaporator Core
click to zoom in

1974-1985 A/C Evaporator Core

(No reviews yet) Write a Review
Weight:
8.00 LBS
$190.00

#SAVETHEFULLSIZEJEEP

A Portion Of The Proceeds From Your Purchase Supports The Development & Reproduction Of High Quality 1963-1991 Restoration Parts.

1974-1985 A/C Evaporator Core

1974-1985 A/C Evaporator Core

$190.00

video gallery

Description

The purpose of the evaporator is to condition the air in your FSJ passenger compartment. As air is blown across the surface of the evaporator fins, cold refrigerant flowing through the evaporator will remove heat and cool the air. As the air cools, moisture will condense into water on the fins lowering the humidity. The water will collect some of the dust and pollen filtering the air. Evaporators are made of aluminum to resist corrosion and are pressure tested at the factory. This AC Evaporator Is The Main Cause If You Have A Fast Freon Leak Coming From The Dash Or You Smell Refrigerant Coming From Your Vents!

Fits:

  • 1974-1983 Wagoneer
  • 1974-1983 Cherokee
  • 1984-1985 Grand Wagoneer
  • 1974-1985 J-Series Trucks

Features & Benefits

  • Meets or exceeds O.E. design and performance
  • Aluminum Body
  • Plate Rib Pattern
  • Various Inlet/Outlet Locations
  • Optimized Refrigerant Flow
  • Lightweight, corrosion resistant improves condensation
  • More than 50 plate designs allows maximum heat transfer and manufacturing flexibility
  • Optimized pressure drop, Multiple Body Designs

Specifications:

Core Depth Fraction 3-1/4 IN
Core Depth MM 82.55 MM
Core Height Fraction 10-1/4 IN
Core Height MM 260.35 MM
Core Width Fraction 8 in
Core Width MM 203.2 MM
Height 10.25 IN
Inlet Fitting Outside Diameter No. 8
Inlet Fitting Type Flare Fitting
Material Aluminum
O-Ring A Number/Desc [24608] / Green O-Ring
O-Ring A Quantity 1
O-Ring B Number/Desc [24610] / Green O-Ring
O-Ring B Quantity 1
Outlet Fitting Outside Diameter No. 10
Type Tube & Fin
Width 8.000 in
