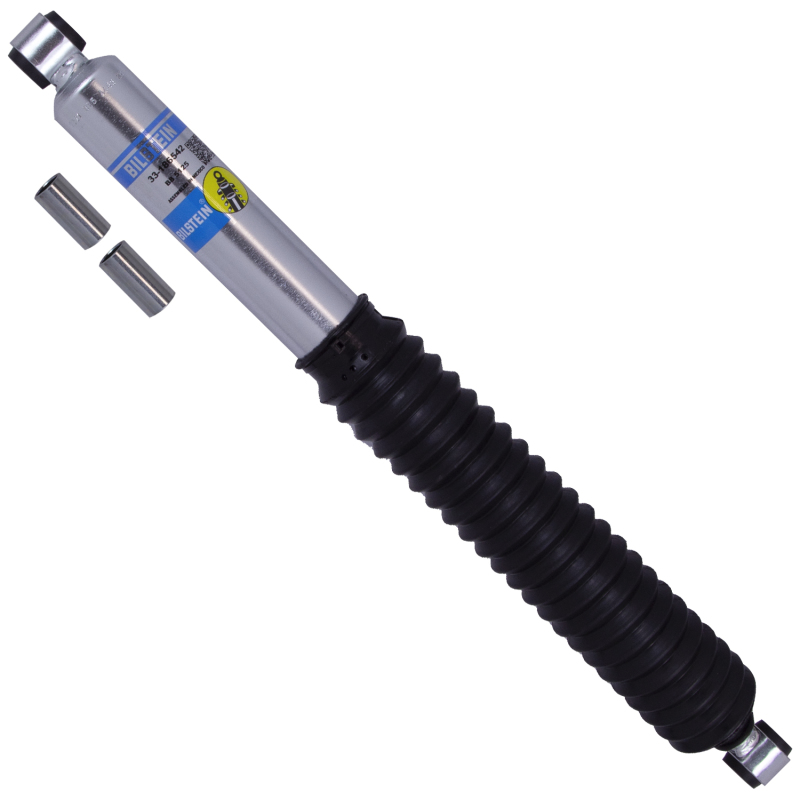

1974-1991 Bilstein 5125 Front/Rear Shock Absorber for stock and lifted FSJs

Bilstein

1974-1991 Bilstein 5125 Front/Rear Shock Absorber for stock and lifted FSJs

(No reviews yet)

UPC:

651860626659

Weight:

5.00 LBS

$118.01

#SAVETHEFULLSIZEJEEP

A Portion Of The Proceeds From Your Purchase Supports The Development & Reproduction Of High Quality 1963-1991 Restoration Parts.

1974-1991 Bilstein 5125 Front/Rear Shock Absorber for stock and lifted FSJs

$118.01

Description
Shipping & Returns

Description

The 5125 Series offers Bilstein technology for custom applications. The 5125 Series shocks feature a superior monotube high-gas pressure design for consistent, fade-free performance and long life for your Full Size Jeep. Bilstein's patented deflective self-adjusting valving delivers improved damping control and a smooth ride on all road surfaces at any speed. All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving. Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders.

Can be used for both stock height and up to 3-4" lift:

Fits:

1974-1983 Wagoneer
1974-1983 Cherokee
1984-1991 Grand Wagoneer
1974-1988 J-Series Trucks

Specifications:

Position: Front and Rear

Adjustable Damping:Non-Adjustable

Body Design:Smooth Body (Non-Coilover)

Body Diameter (ID):46mm

Boot Included:Black Bellows

Collapsed Length (IN) Rounded:15

Collapsed Length (IN):15.12

Collapsed Length (MM):384.0

Compression @0.52m/s:700

Extended Length (IN) Rounded:24

Extended Length (IN):24.35

Extended Length (MM):618.5

Finish:Zinc Plated

Internal Design:Monotube

Lower Mount Type:Eye 5/8in

Mount Type:Eye-to-Eye

Rebound @0.52m/s:2550

Reservoir:No

Series:B8 5125

Spring Seat Included:No

Upper Mount Type:Eye 5/8in

Features and Benefits:

Individually engineered for a wide array of specific vehicles and lift combinations
Monotube gas pressure technology
Easy to install; direct bolt-on; no modification required
Multi-layer zinc finish is the most durable in the industry
5100 Series provides the most comprehensive range of vehicle applications
Self-adjusting deflective disc valving with independent rebound and compression tuning
Lifetime Warranty
