5 Row Series 9000 Plate & Fin Cooler, 1/2" NPT

(No reviews yet) Write a Review
UPC:
00083277336010
Availability:
This part ships direct from the manufacturer, lead times, stock and shipping may vary.
Weight:
4.00 LBS
$71.28

#SAVETHEFULLSIZEJEEP

A Portion Of The Proceeds From Your Purchase Supports The Development & Reproduction Of High Quality 1963-1991 Restoration Parts.

5 Row Series 9000 Plate & Fin Cooler, 1/2" NPT

5 Row Series 9000 Plate & Fin Cooler, 1/2" NPT

$71.28
Very popular with original equipment manufacturers for use on their towing applications, our Plate and Fin coolers is no exception, featuring strong furnace-brazed construction, 1 1/4" wide plates and embossed turbulators which maximize heat transfer while also minimizing pressure drop. This unit is perfect for light to medium duty use and occasional towing. It greatly extends transmission life by preventing heat-related transmission failures, and improve shifting performance. Built with 1/2" NPT female cooler ports and includes 1/2" NPT x 3/8" hose barb adapters.



BTU12500
ColorBlack
Cooler stylePlate & Fin
Depth1-1/4
Description_ASC1-1/4" turbulators maximize cooling & minimize pressure drop
Description_ASC1/2" NPT x 3/8" hose barb adapters included
Description_ASC12500 BTU
Description_ASC5 row cooler design
Description_ASCCooler Only
Description_ASCEmbossed turbulators inserted in each tube agitate fluid for maximum heat transfer
Description_ASCExtruded plastic cooling fin guards
Description_ASCFluid Capacity: 3 oz.
Description_ASCImproves transmission performance
Description_ASCNew 1/2" NPT female cooler fittings
Description_ASCSturdy furnace-brazed aluminum construction
Description_DEFAutomatic Transmission Oil Cooler
Description_DES5 Row Series 9000 Plate & Fin Cooler, 1/2" NPT
Description_KEYplate and fin coolers; plate and fin transmission cooler kits; transmission cooling; transmission components; aluminum coolers, towing accessories; coolers; transmission cooling; stacked plate coolers; transcoolers; heavy duty transcoolers; heavy duty transmission cooler kits
Description_MKTVery popular with original equipment manufacturers for use on their towing applications, our Plate and Fin coolers is no exception, featuring strong furnace-brazed construction, 1 1/4" wide plates and embossed turbulators which maximize heat transfer while also minimizing pressure drop. This unit is perfect for light to medium duty use and occasional towing. It greatly extends transmission life by preventing heat-related transmission failures, and improve shifting performance. Built with 1/2" NPT female cooler ports and includes 1/2" NPT x 3/8" hose barb adapters.
Fitting size3/8 barb
GVW16000

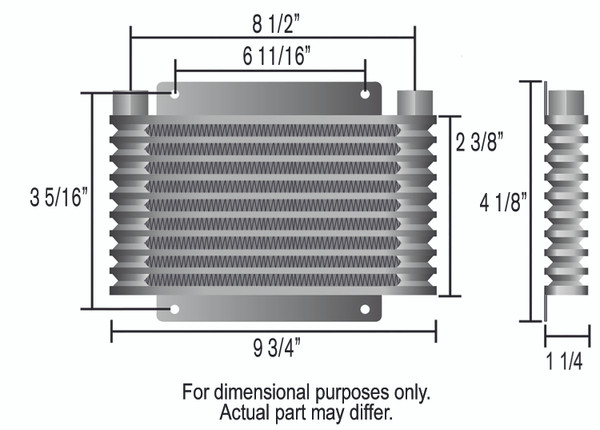

Height4-1/8
Inlet dim8-1/2
Inlet size1/2 NPT female
MaterialAluminum
Mounting6-11/16 x 3-5/16
Width9-3/4
