8 & 8 Pass Dual Circuit Electra-Cool Remote Fluid Cooler, -8AN

(No reviews yet) Write a Review
UPC:
00083277152009
Availability:
This part ships direct from the manufacturer, lead times, stock and shipping may vary.
Weight:
5.13 LBS
$208.94

#SAVETHEFULLSIZEJEEP

A Portion Of The Proceeds From Your Purchase Supports The Development & Reproduction Of High Quality 1963-1991 Restoration Parts.

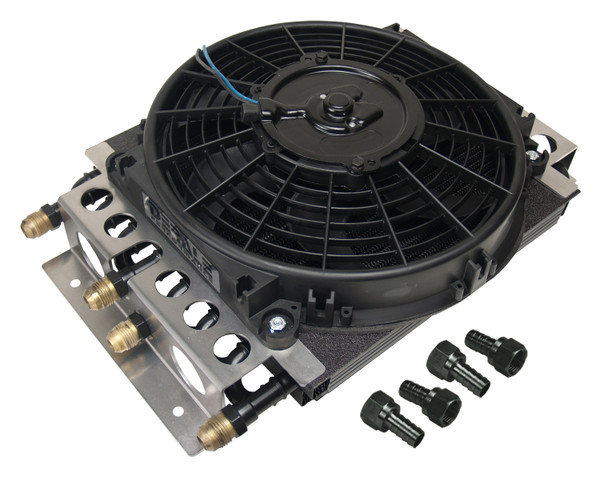

8 & 8 Pass Dual Circuit Electra-Cool Remote Fluid Cooler, -8AN

8 & 8 Pass Dual Circuit Electra-Cool Remote Fluid Cooler, -8AN

$208.94
Combining an efficient 8 & 8 Pass copper/aluminum Made-in-the-USA cooler with a powerful 10" Tornado electric fan, this compact remote cooler cools two separate systems with one compact design that can be mounted literally anywhere space permits. Includes clear anodized aluminum mounting brackets, (2) -8AN x 3/8" and (2) -8AN x 1/2" hose barb fittings to adapt to a wide variety of heat removal requirements.

Installation Instructions





AirflowPuller (reversible)
Amp draw5.3
Barb size1/2
CFM650
ColorBlack
CommentsClear anodized aluminum brackets
CommentsCooler is rated at 250psi working pressure and 300psi burst strength
CommentsCools two systems with one compact, space-saving design
CommentsEfficient copper/aluminum 8 & 8 pass cooler core
CommentsIncludes (2) -8AN x 3/8" and (2) -8AN x 1/2" hose barb fittings
CommentsReversible 10" Tornado electric fan
Cooler Fluid Capacity9 oz per/circuit
Cooler style8 & 8 pass Tube & Fin
Depth5
Fan size10
Height11-1/2
Inlet dim8-3/4
Inlet size-8AN
Mounting14-3/4 x 5-1/4
Rated functional250psi working / 300psi burst strength
Width15-3/4
