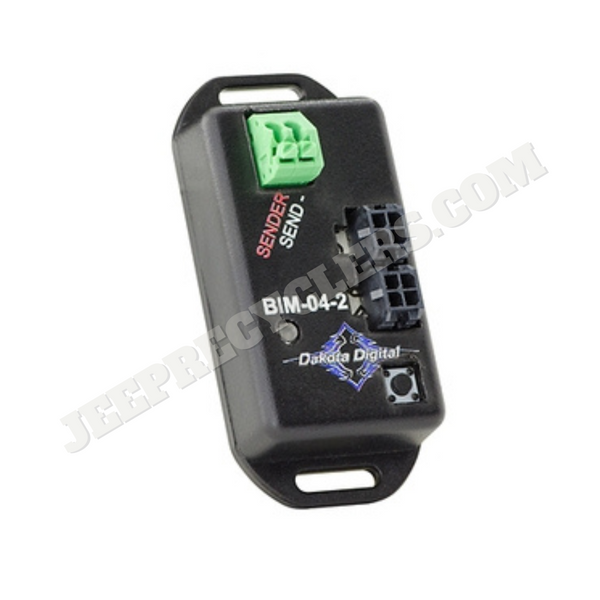

The Dakota Digital BIM-04-2 is a temperature expansion module designed to integrate with Dakota Digital's VHX, VFD3 and RTX gauge systems available for Full-Size Jeeps. This module enables the display of additional temperature readings, such as:

• Temperature (generic fluid)
• Water Temp
• Oil Temp
• Transmission Temp
• Differential Temp

*An expansion unit sender is required for EACH input you wish to display. For example if you wish to dislay all 5 inputs, 5 sending units (SEN-04-5) are required. Simply select the quantity you need above in the pull-down menu.

Input senders and specifications:

* All temperature readings will display either Fahrenheit or Celsius depending on the setting selected by the gauge cluster.

Transmission Temperature: if your transmission does NOT have a test port (threaded port in the fluid circuit) or a port in your pan, you can select an Inline Transmission Temperature Sender Block in the pull-down menu (5/16 or 3/8) which you install inline with your transmission cooling lines, in the output line.

The BIM-04-2 is designed to supply information to the compatible Dakota Digital VHX, HDX, RTX VFD3 instrument systems with a black plastic control module. For any BIM-compatible control boxes which contain the 3.5mm headphone jack BIM input, add part number 394193 adaptor harness. Earlier instrument systems with an aluminum control module are not capable of BIM connectivity.
