The MMX series of mounts offer the most strength, adjustability, and modularity available for Dodge Small Block V8 engines in Full Size Jeeps.

Ease of Installation

These mounts are weld-in style and detailed instructions will guide to an ideal installation.

Strength

The Novak mounts feature thick 3/16" laser cut and CNC bent steel construction. Engineered using advanced CAD modeling and real world testing, these mounts have shown to handle even the wildest V8.

Vibration Isolation

Each mount kit comes with our high-grade urethane isolators that are specified for that ideal balance of isolation and firmness with the power of modern engines. Substantial 5/8" through bolts capture the assembly. Replacement bushing sets are available below should replacement ever be needed.

Compactness

Geometry of the mounts is compact to provide clearance for all stock components including the steering shaft with its pillow block and the recommended exhaust headers below.

Adjustability

The design on these mounts allows outstanding placement freedom in most any vehicle that meets the width requirements and has parallel frame channels. They have a large adjustment range for placement in the vertical, left-right offset, and longitudinal directions.

Engine Mount Finish

All parts except the frame brackets are zinc coated for resistance against corrosion. As the frame brackets are welded to the frame, any finish on the frame side brackets as well as the frame would be burned. The welded channels will need to be finished but you may enamel, powder coat, or otherwise finish the bracketry and adjacent frame area to your own style.

Fits:

• All Full Size Jeeps
• All Dodge 318 and Dodge 360-equipped vehicles

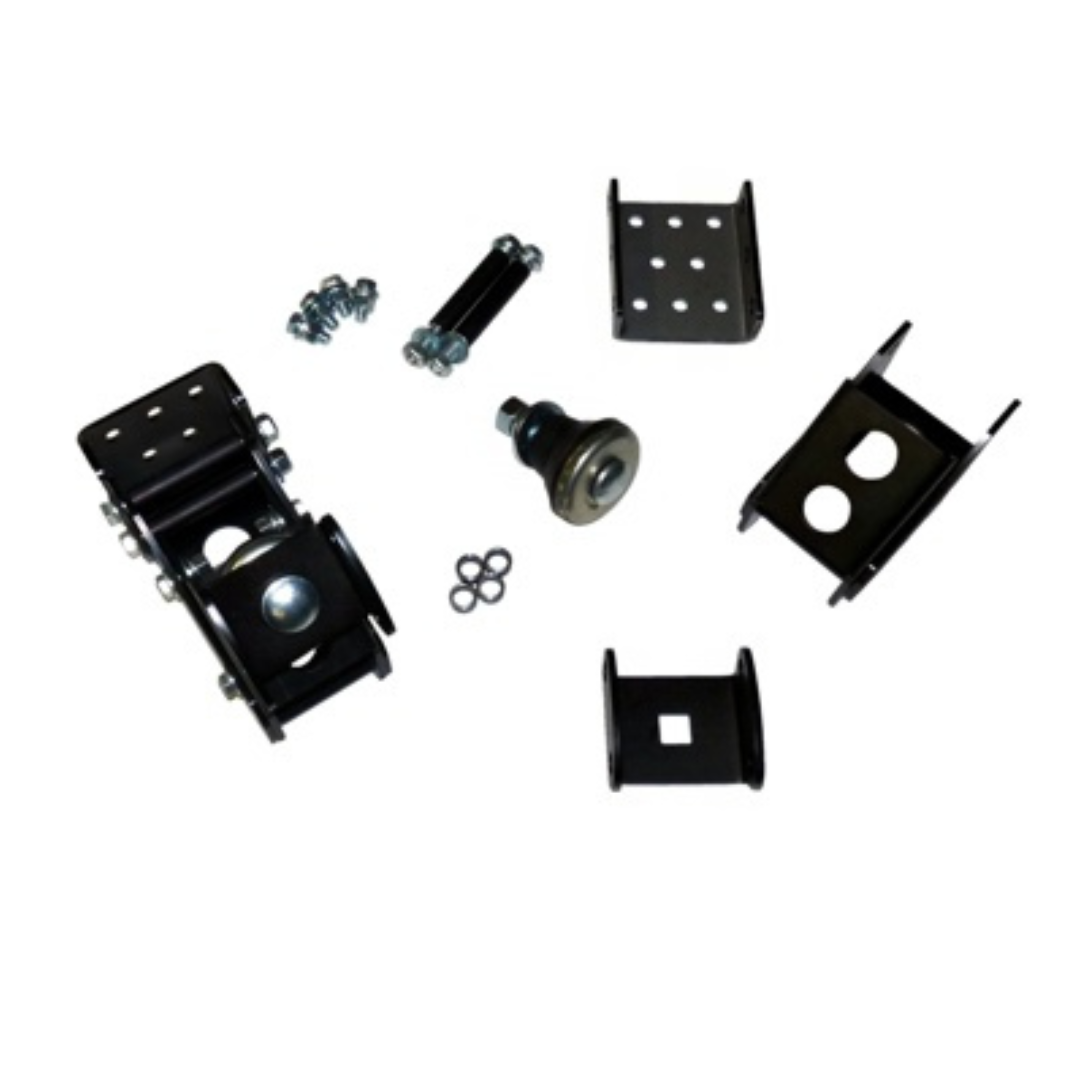

Kit contents:

• Frame platform sets, sliding pairs
• Frame anchor brackets
• Upper urethane bushings
• Lower urethane bushings
• Engine block plates
• Fastening hardware
• Instructions
