Edelbrock Pro Flo 4 Fuel Injection Kit for AMC V8

(No reviews yet) Write a Review
UPC:
085347356508
$2,483.95

#SAVETHEFULLSIZEJEEP

A Portion Of The Proceeds From Your Purchase Supports The Development & Reproduction Of High Quality 1963-1991 Restoration Parts.

Edelbrock Pro Flo 4 Fuel Injection Kit for AMC V8

Edelbrock Pro Flo 4 Fuel Injection Kit for AMC V8

$2,483.95

Edelbrock Pro Flo 4 Fuel Injection Kit for AMC V8

$2,483.95

If your Full Size Jeep still relies on a carburetor and you want more precise fuel delivery, easier starting, and stronger overall drivability, the Edelbrock Pro-Flo 4 EFI Kit is a serious upgrade. This system replaces the carburetor and intake setup on the top of your AMC V8 engine with a fully sequential multi-port EFI system designed to improve fuel atomization, distribution, and tuning control.

Features & Benefits:

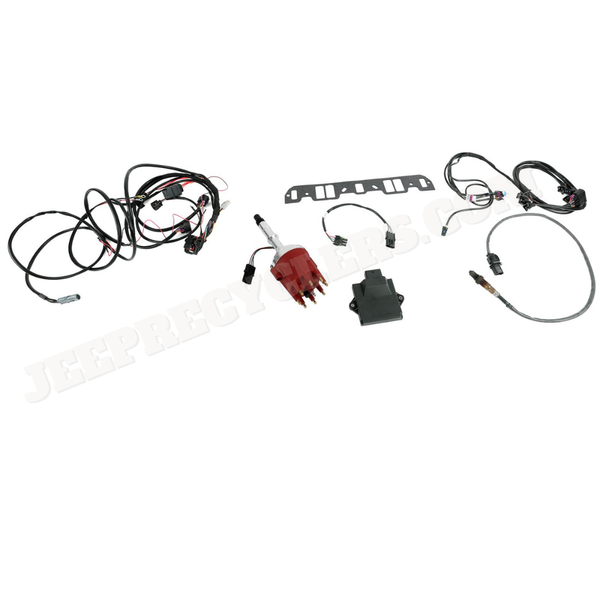

  • Fully sequential multi-port EFI system

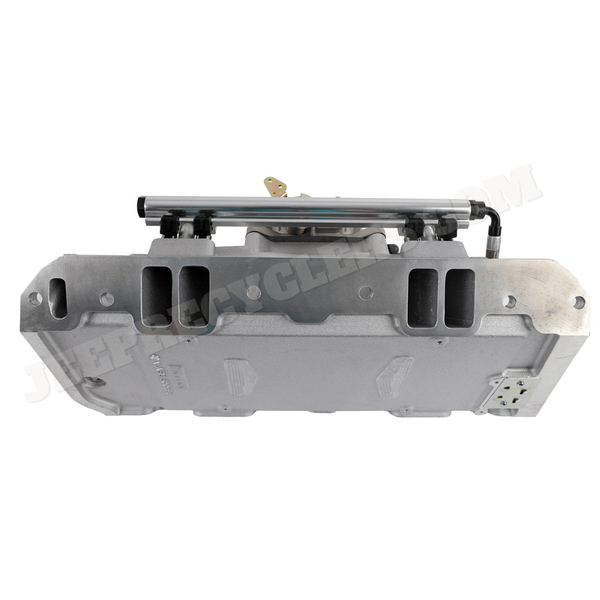

  • Victor Jr.-style single-plane intake manifold
  • 4150-style throttle body
  • Fuel rails and individual 35 lb/hr injectors
  • Preloaded ECU with dyno-developed base calibrations
  • Self-learning technology
  • No laptop tuning required
  • Bluetooth-enabled E-Tuner 4 app connects the ECU to your Android phone or tablet, allowing you to monitor engine vitals through multiple dash display layouts and adjust key settings like idle speed, AFR targets, acceleration fuel, ignition timing, cold-start fuel, cranking fuel, and two adjustable cooling fan output
  • Ignition control through the app
  • Wideband oxygen sensor included
  • Distributor included
  • Wiring harness with labeled connections
  • Waterproof ECU design
  • Automatically compensates for altitude and weather changes
  • Boost compatible with optional 2-bar MAP sensor conversion
  • Rated for up to 550 horsepower at 58 PSI
  • Android and iOS compatible app setup

Additional Specs:

  • System Type: Sequential multi-port EFI
  • Intake Style: Victor Jr.-style single-plane
  • Throttle Body Flange: 4150-style
  • Injector Size: 35 lb/hr
  • Horsepower Rating: Up to 550 HP
  • Fuel Pressure: Approximately 58 PSI for 401 engines
  • Fuel Pressure: Approximately 43 PSI for 360 engines
  • Fuel Pressure Port: 1/8-27 NPT
  • ECU: Preloaded with dyno-tuned calibrations
  • Tuning: Self-learning with E-Tuner 4 app
  • Oxygen Sensor: Wideband included
  • Distributor: Included
  • Wiring Harness: Pre-terminated and labeled
  • Fuel System Requirement: Requires a high-pressure EFI-compatible fuel delivery system
  • Bore Diameter:1.75in
  • Compliance: Not C.A.R.B. compliant

Important Notes:

  • This system requires a high-pressure EFI-compatible fuel delivery system (We recommend the Edelbrock Fuel Sump Surge Tank available in the add-on pull-down menu above)

Fits AMC V8 Engines (304 / 360 / 390 / 401):

  • 1970-1983 Wagoneer
  • 1974-1983 Cherokee
  • 1984-1991 Grand Wagoneer
  • 1970-1988 J-Series Trucks

=> Installation Instructions PDF
=> Quick Start Guide Manual
