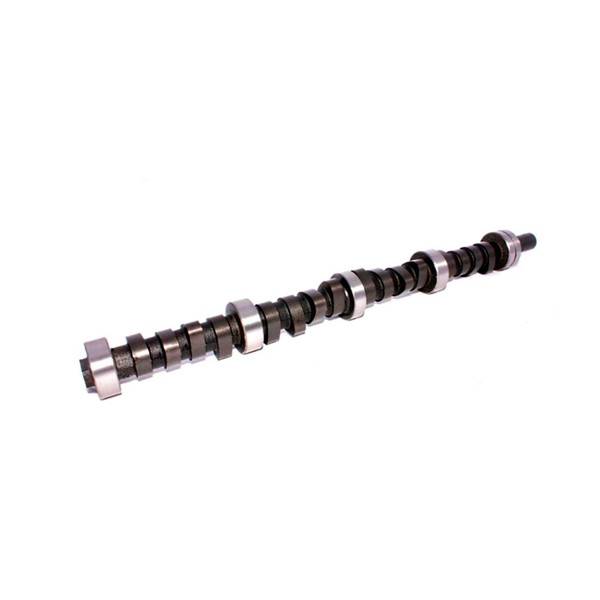

High Energy 206/206 Hydraulic Flat Cam for AMC 290-401

(No reviews yet) Write a Review
UPC:
00036584600015
Availability:
This part ships direct from the manufacturer, lead times, stock and shipping may vary.
Weight:
10.70 LBS
$247.44

#SAVETHEFULLSIZEJEEP

A Portion Of The Proceeds From Your Purchase Supports The Development & Reproduction Of High Quality 1963-1991 Restoration Parts.

High Energy 206/206 Hydraulic Flat Cam for AMC 290-401

High Energy 206/206 Hydraulic Flat Cam for AMC 290-401

$247.44
Strong torque, excellent mileage for 290-304, has smooth idle, good for stock replacement.

Installation Instructions

Installation Instructions



This Part Fits:

YearMakeModelSubmodel
1974JeepCherokeeBase
1975JeepCherokeeBase
1976JeepCherokeeBase
1977-1978JeepCherokeeBase
1979-1983JeepCherokeeBase
1981-1982JeepCherokeeChief
1983JeepCherokeePioneer
1974-1975JeepCherokeeS
1976-1977JeepCherokeeS
1978JeepCherokeeWide Track
1979-1980JeepCherokeeWide Track
1984-1991JeepGrand WagoneerBase
1984-1985JeepGrand WagoneerLimited
1971-1972JeepJ-100Base
1973JeepJ-100Base
1970JeepJ-2500Base
1971JeepJ-2500Base
1972-1973JeepJ-2500Base
1970-1971JeepJ-2600Base
1972JeepJ-2600Base
1973JeepJ-2600Base
1970-1971JeepJ-3800Base
1971-1972JeepJ-4500Base
1973JeepJ-4500Base
1971-1972JeepJ-4600Base
1973JeepJ-4600Base
1971JeepJ-4700Base
1972-1973JeepJ-4700Base
1971-1972JeepJ-4800Base
1973JeepJ-4800Base
1974JeepJ10Base
1975-1976JeepJ10Base
1977JeepJ10Base
1978JeepJ10Base
1979-1988JeepJ10Base
1974JeepJ20Base
1975JeepJ20Base
1976JeepJ20Base
1977-1978JeepJ20Base
1979-1988JeepJ20Base
1972JeepWagoneerBase
1973-1974JeepWagoneerBase
1975-1976JeepWagoneerBase
1977JeepWagoneerBase
1978JeepWagoneerBase
1979-1982JeepWagoneerBase
1982-1983JeepWagoneerBrougham
1973-1976JeepWagoneerCustom
1979-1983JeepWagoneerLimited


Advertised Exhaust Duration252
Advertised Intake Duration252
ApplicationsFits AMC 290, 304, 343, 360, 390 and 401
Assembly Lubricant IncludedYes
Basic Operating RPM Range800-4,800
C.A.R.B. E.O. NumberN/A
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?No
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?Yes, but must be a race/competition only vehicle.
C.A.R.B. Exemption ReasonN/A
California Proposition 65WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
Cam and Lifter Kit UpgradeCL10-200-4
Cam TypeHydraulic Flat Tappet
Camshaft Gear Attachment1-Bolt
Camshaft MaterialCast Iron
Camshaft SeriesHigh Energy
DescriptionStrong torque, excellent mileage for 290-304, has smooth idle, good for stock replacement.
Engine FamilyAmerican Motors 290-401 c.i. 8 Cylinder (1966-1991)
Exhaust Duration at .050 inch Lift206
Exhaust Valve Lift0.433
Grind Number252H
Intake Duration at .050 Inch Lift206
Intake Valve Lift0.433
K-Kit UpgradeK10-200-4
Lifter TypeHydraulic Flat Tappet
Lifters IncludedNo
Lobe Separation110
SK-Kit UpgradeSK10-200-4
UsageStreet/Performance
Valve Springs RequiredYes
