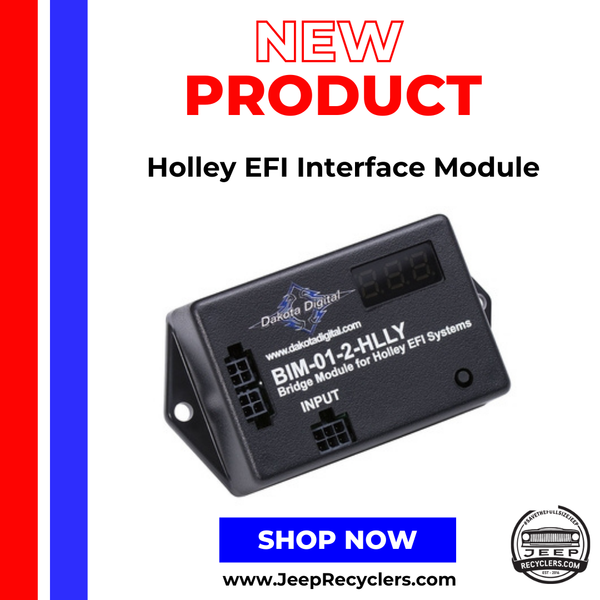

The BIM-01-2-HLLY is designed to read the engine information from the Holley Terminator, Terminator X and X MAX,  HP, Dominator and Sniper (except Sniper 2) EFI kits. The BIM-01-2-HLLY module is a direct plug in using the supplied harness for a simple connection to the Holley EFI system.

For Sniper 2 systems please order the BIM-01-2-HSN2.

The BIM-01-2-HLLY and BIM-01-2-HSN2 will collect and output the following information to Dakota Digital Instrument Systems *:

Always available:

• Tachometer
• Engine Coolant Temp
• Intake/ Manifold Temp.
• Air/ Fuel Ratio
• MAP

Please note: Due to the various ECM's, additional data add-on's from Holley may be available such as Vehicle Speed, Oil Pressure, Fuel Pressure and Boost. Dakota Digital cannot guarantee the presence or accuracy of the Coolant Temp., Intake Temp., Fuel Pressure, or Air/ Fuel ratio displays since this is a function of the ECM and matching Holley functional sensors.

*The BIM-01-2-HLLY is designed to decode the information provided by the Holley Terminator (X and X MAX with BIM-01-2-HLLY produced after 6/13/2019), Sniper (Sniper with BIM-01-2-HLLY produced after 2/1/2018) HP and Dominator EFI's and supply this information to Dakota Digital systems utilizing an external black plastic control module.

*The BIM-01-2-HSN2 is designed to decode the information provided by the Holley Sniper 2 EFI and supply this information to Dakota Digital systems utilizing an external black plastic control module.

**Compatible Dakota Digital instrument system: VHX, HDX, RTX, GRFX and VFD3 systems with a black plastic control module. Earlier instrument systems with an aluminum control module are not capable of BIM connectivity.
