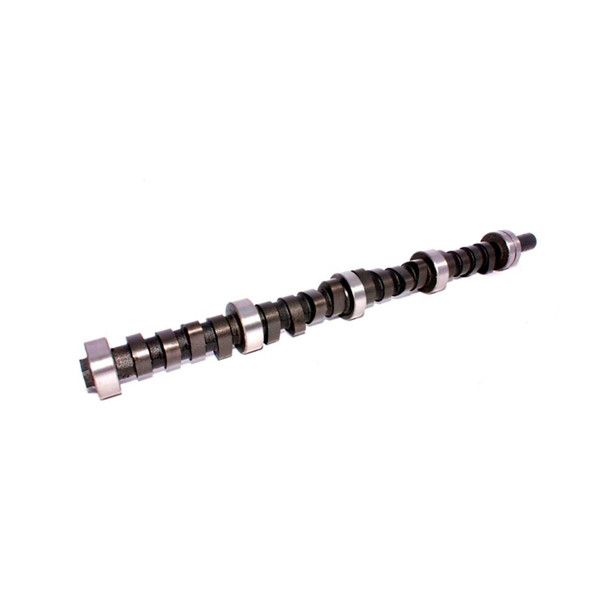

Race 255/266 Solid Flat Cam for AMC 290-401

(No reviews yet) Write a Review
UPC:
00036584640028
Availability:
This part ships direct from the manufacturer, lead times, stock and shipping may vary.
Weight:
10.14 LBS
$345.42

#SAVETHEFULLSIZEJEEP

A Portion Of The Proceeds From Your Purchase Supports The Development & Reproduction Of High Quality 1963-1991 Restoration Parts.

Race 255/266 Solid Flat Cam for AMC 290-401

Race 255/266 Solid Flat Cam for AMC 290-401

$345.42
Great for mid-range torque in a heavy car with a 4000 converter and 10.5:1 compression.

Installation Instructions

Installation Instructions



This Part Fits:

YearMakeModelSubmodel
1974JeepCherokeeBase
1975-1977JeepCherokeeBase
1978-1983JeepCherokeeBase
1981-1982JeepCherokeeChief
1983JeepCherokeePioneer
1974JeepCherokeeS
1975JeepCherokeeS
1976JeepCherokeeS
1977JeepCherokeeS
1978-1980JeepCherokeeWide Track
1984-1991JeepGrand WagoneerBase
1984-1985JeepGrand WagoneerLimited
1971-1972JeepJ-100Base
1973JeepJ-100Base
1970-1973JeepJ-2500Base
1970-1973JeepJ-2600Base
1970-1971JeepJ-3800Base
1971-1973JeepJ-4500Base
1971JeepJ-4600Base
1972JeepJ-4600Base
1973JeepJ-4600Base
1971JeepJ-4700Base
1972-1973JeepJ-4700Base
1971-1973JeepJ-4800Base
1974-1975JeepJ10Base
1976JeepJ10Base
1977-1978JeepJ10Base
1979-1988JeepJ10Base
1974-1975JeepJ20Base
1976JeepJ20Base
1977-1978JeepJ20Base
1979-1988JeepJ20Base
1972-1973JeepWagoneerBase
1974-1975JeepWagoneerBase
1976JeepWagoneerBase
1977-1978JeepWagoneerBase
1979-1982JeepWagoneerBase
1982-1983JeepWagoneerBrougham
1973-1976JeepWagoneerCustom
1979-1983JeepWagoneerLimited


Advertised Exhaust Duration304
Advertised Intake Duration290
ApplicationsFits AMC 290, 304, 343, 360, 390 and 401
Assembly Lubricant IncludedYes
Basic Operating RPM Range3,800-6,800
C.A.R.B. E.O. NumberN/A
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?No
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?Yes, but must be a race/competition only vehicle.
C.A.R.B. Exemption ReasonN/A
California Proposition 65WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
Cam TypeSolid Flat Tappet
Camshaft Gear Attachment1-Bolt
Camshaft MaterialCast Iron
Camshaft SeriesRace
DescriptionGreat for mid-range torque in a heavy car with a 4000 converter and 10.5:1 compression.
Engine FamilyAmerican Motors 290-401 c.i. 8 Cylinder (1966-1991)
Exhaust Duration at .050 inch Lift266
Exhaust Valve Lift0.57
Grind Number290B-6
Intake Duration at .050 Inch Lift255
Intake Valve Lift0.576
Lifter TypeSolid Flat Tappet
Lifters IncludedNo
Lobe Separation106
UsageStrip
Valve Springs RequiredYes
