Transmission Cooling Pan, Reduces Fluid Temps up to 50°F, Increase Capacity

(No reviews yet) Write a Review
UPC:
00083277142000
Availability:
This part ships direct from the manufacturer, lead times, stock and shipping may vary.
Weight:
8.31 LBS
$213.72

#SAVETHEFULLSIZEJEEP

A Portion Of The Proceeds From Your Purchase Supports The Development & Reproduction Of High Quality 1963-1991 Restoration Parts.

Transmission Cooling Pan, Reduces Fluid Temps up to 50°F, Increase Capacity

Transmission Cooling Pan, Reduces Fluid Temps up to 50°F, Increase Capacity

$213.72

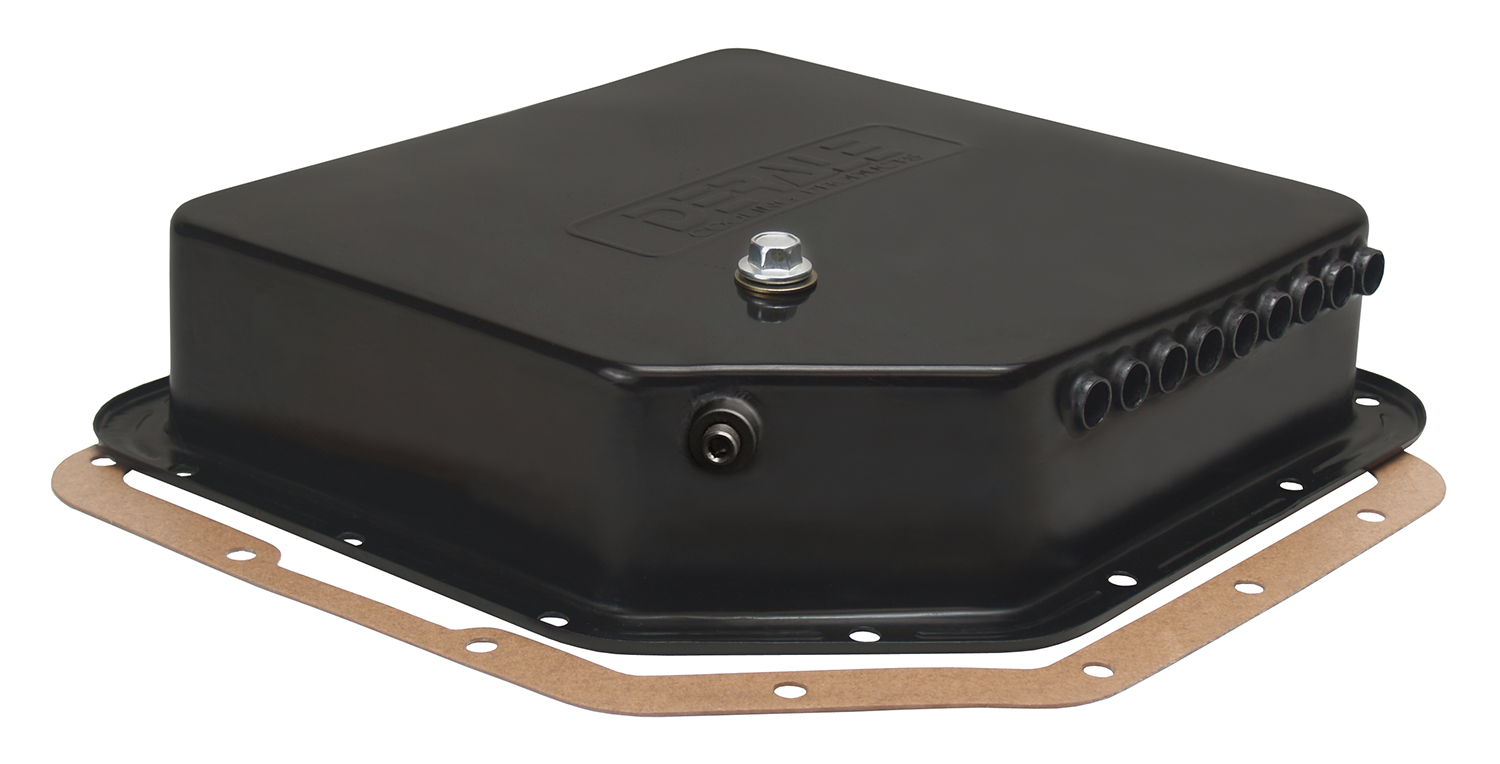

Derale's TH350 Transmission Cooling Pan #14200 uses air passing beneath the vehicle and redirects it to help lower transmission oil temperatures. With brazed, turbulator-equipped airway tubes passing through the lower section of the transmission pan for more efficient cooling, each is individually pressure tested to ensure a leak-free pan. We've included a much stronger magnetic drain plug and rubber/steel reusable washer, in addition to a 1/8" NPT temperature sender bung located in the side of the pan. Finished with a durable black two-stage coating, each pan also includes neoprene gasket and 1/8" NPT temperature sender plug.

Installation Instructions





ColorBlack
Description_ASC1/8" NPT temperature sender port
Description_ASCHeavy gauge stamped steel construction
Description_ASCIncreases fluid capacity by 2 qts.
Description_ASCMagnetic drain plug with increased magnetic strength and rubber/steel washer
Description_ASCPan depth: 3-1/4"

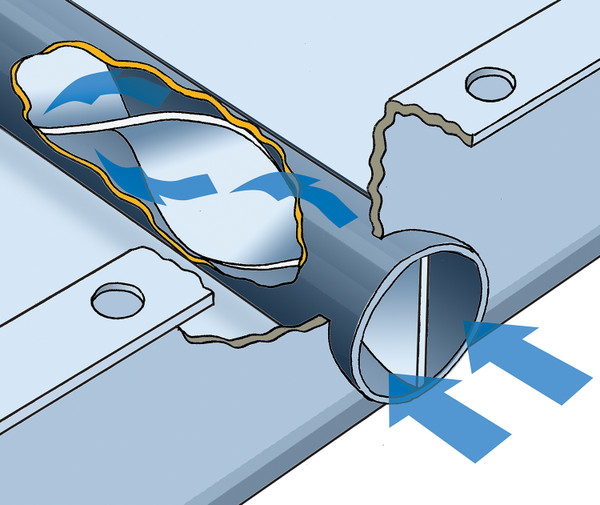

Description_ASCPatented turbulator cooling tubes add heat transfer capability
Description_ASCReduces fluid temperatures up to 50°F
Description_ASCTwo stage heat dissipating black finish
Description_ASMGM TH350
Description_DEFTransmission Oil Pan
Description_DESTransmission Cooling Pan, Reduces Fluid Temps up to 50°F, Increase Capacity
Description_KEYtransmission pans; deep transmission pans; Turbo 350 transmission pans; Turbohydramatic 350 transmission components; transmission cooling; transmission cooling pans; made in usa transcoolers; transpans; cooling pans; performance transmission components
Description_MKTDerale's TH350 Transmission Cooling Pan #14200 uses air passing beneath the vehicle and redirects it to help lower transmission oil temperatures. With brazed, turbulator-equipped airway tubes passing through the lower section of the transmission pan for more efficient cooling, each is individually pressure tested to ensure a leak-free pan. We've included a much stronger magnetic drain plug and rubber/steel reusable washer, in addition to a 1/8" NPT temperature sender bung located in the side of the pan. Finished with a durable black two-stage coating, each pan also includes neoprene gasket and 1/8" NPT temperature sender plug.
Pan depth3-1/4
Temp bung size1/8 NPT
Tube depth2-3/8
