New

1963-1969 Gladiator, J-Truck 4-inch Spring Lift Kit

Hell Creek Suspensions

1963-1969 Gladiator, J-Truck 4-inch Spring Lift Kit

(No reviews yet)

Availability:

✅ FREE Shipping lower 48

$1,980.00

Current Stock:

Quantity:

#SAVETHEFULLSIZEJEEP

A Portion Of The Proceeds From Your Purchase Supports The Development & Reproduction Of High Quality 1963-1991 Restoration Parts.

Frequently Bought Together

This Item: 1963-1969 Gladiator, J-Truck 4-inch Spring Lift Kit

$1,980.00

Choose Options

Front Shackle Bushings: *

Rear Spring Bushings (post/stationary end of the rear spring): *

Would you like to add a Rancho steering stabilizer/damper? (Vehicle must already have compatible steering stabilizer mounts. Mounting bracket kit is not included): *

Would you like to add drop pitman arm?: *

Would you like to add front/rear BDS NX2 Shocks?: *

1963-1969 Gladiator, J-Truck 4-inch Spring Lift Kit

$1,980.00

Quantity:

Choose Option

1963-1969 Gladiator, J-Truck 4-inch Spring Lift Kit

$1,980.00

Front Shackle Bushings: *

Rear Spring Bushings (post/stationary end of the rear spring): *

Would you like to add a Rancho steering stabilizer/damper? (Vehicle must already have compatible steering stabilizer mounts. Mounting bracket kit is not included): *

Would you like to add drop pitman arm?: *

Would you like to add front/rear BDS NX2 Shocks?: *

Description
Shipping & Returns

Description

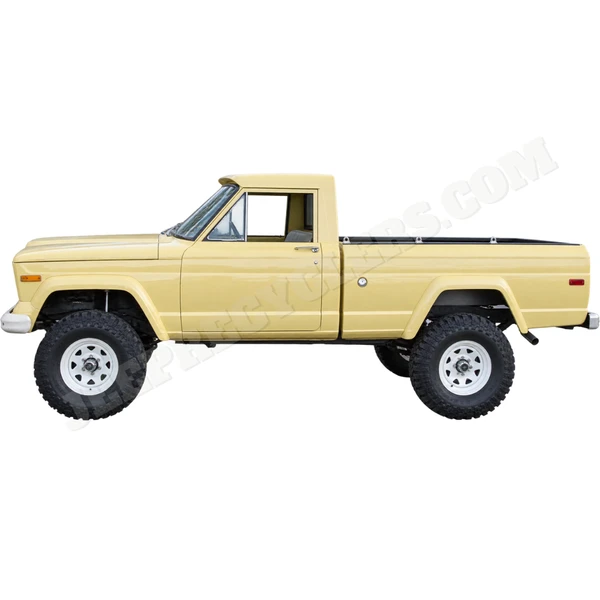

Elevate your 1963-1969 J-Trucks (including the Gladiator) with this high-quality 4-inch lift kit, designed for improved off-road performance and an aggressive stance that will make your rig stand out. This suspension system is all-spring, with no blocks, providing a more durable and reliable lift. Made in the USA with 5160 alloy steel sourced from the USA or Canada, this lift kit is engineered for strength, performance, and comfort.

With this lift, you’ll enjoy better ground clearance, allowing you to tackle more obstacles and achieve the look your truck should have had from the factory. The ride quality is smooth, and the off-road capabilities are enhanced, making it a perfect upgrade for both daily driving and rugged trails.

WARNING: On the bushing options, be sure to measure carefully as there are exceptions to this list. The bushings are not interchangeable, each size and type are specific to the vehicle they are being installed on. You are responsible for measuring your the bushing sizes & types before you order. If the wrong information is provided, you will receive the wrong springs & will be responsible for the return shipping. You may only replace brass bushings with brass and rubber bushings with rubber. You may not swap one type for another. The rubber post bushing on the front springs is no longer available, so we have substituted a brass post bushing. We still need to know if you have a front rubber shackle bushing.

Key Features:

4-inch lift for 1/2-ton capacity trucks

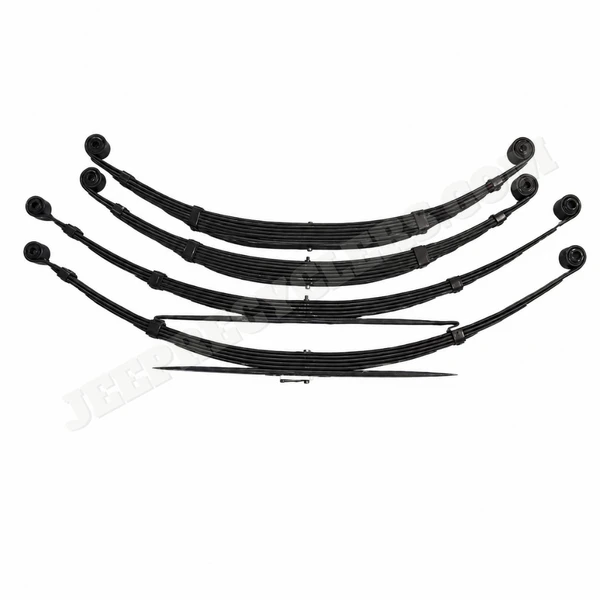

44" Front Springs, 52" Rear Springs
No blocks—all-spring suspension design for durability
Made in the USA with high-quality 5160 alloy steel
Spring eye bushings included
Designed to accommodate up to a 33-inch tire
U-bolts are NOT included—you will need to source them locally from most auto parts stores
Rubber post bushing on front springs replaced with a brass post bushing
Will accommodate up to 33" tire
Recommended to keep backspacing of wheel same as your factory wheels if possible

Fits:

1963-1969 J-Series Trucks

Note: These lift kits are made to order, so please allow 2-3 weeks for shipping. Be sure to measure carefully for bushing compatibility, as some variations exist based on your specific truck.
