G2 Axle and Gear

Amc 20 Master Installation Kit

(No reviews yet)

UPC:

00631410095739

Availability:

This part ships direct from the manufacturer

$168.97

#SAVETHEFULLSIZEJEEP

A Portion Of The Proceeds From Your Purchase Supports The Development & Reproduction Of High Quality 1963-1991 Restoration Parts.

Amc 20 Master Installation Kit

$168.97

Description
Shipping & Returns

Description

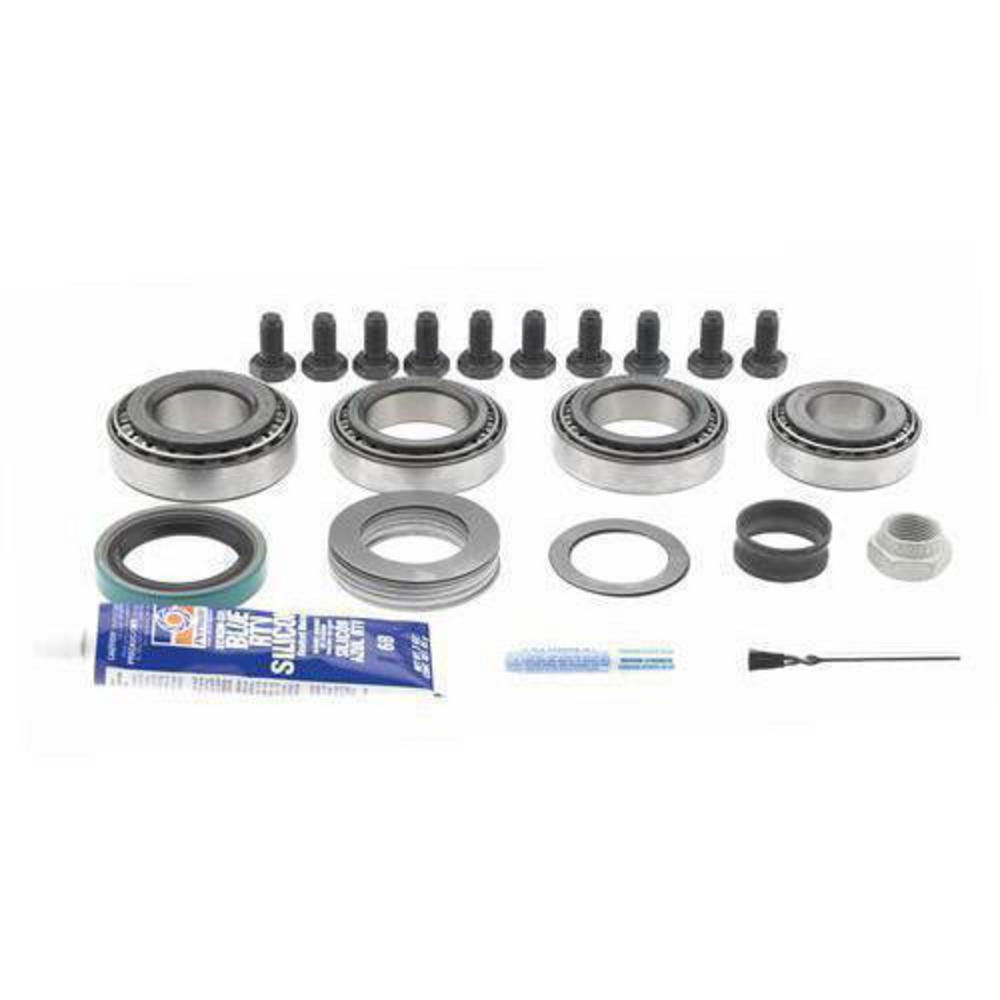

Revolution Gear and Axle ring and pinion master install kits include the premium components needed for a complete differential ring and pinion overhaul. Engineered for dependable performance, these kits are built with high-quality parts, including brand name bearings such as Timken, to help ensure a precise, trouble-free installation. Designed for everything from everyday street use to serious off-road and performance applications, these master install kits include differential pinion and carrier bearings along with the essential hardware and small parts needed to service your gear set properly. When you are investing the time and labor required to replace ring and pinions, the Revolution Gear and Axle master install kits designed for your application help provide the fit, durability, and reliability you need to get the job done right the first time.

Differential Case Design Type: AMC Model 20
Cover Bolts: 12
Ring Gear Bolts: 8
Axle Shaft Spline Quantity: 29
Pinion Spline Count: 29
Ring Gear Rotation: Standard
Cover Gasket Included: Yes
Pinion Shims Included: Yes
Carrier Shims Included: Yes
Crush Sleeve Included: Yes
Pinion Seal Included: Yes
Pinion Nut Included: Yes
Ring Gear Bolts Included: Yes
Head Bearing Included: Yes
Tail Bearing Included: Yes
Carrier Bearings Included: Yes
Axle Seals Included: No
Axle Bearings Included: No
Quantity: Sold as a kit.
