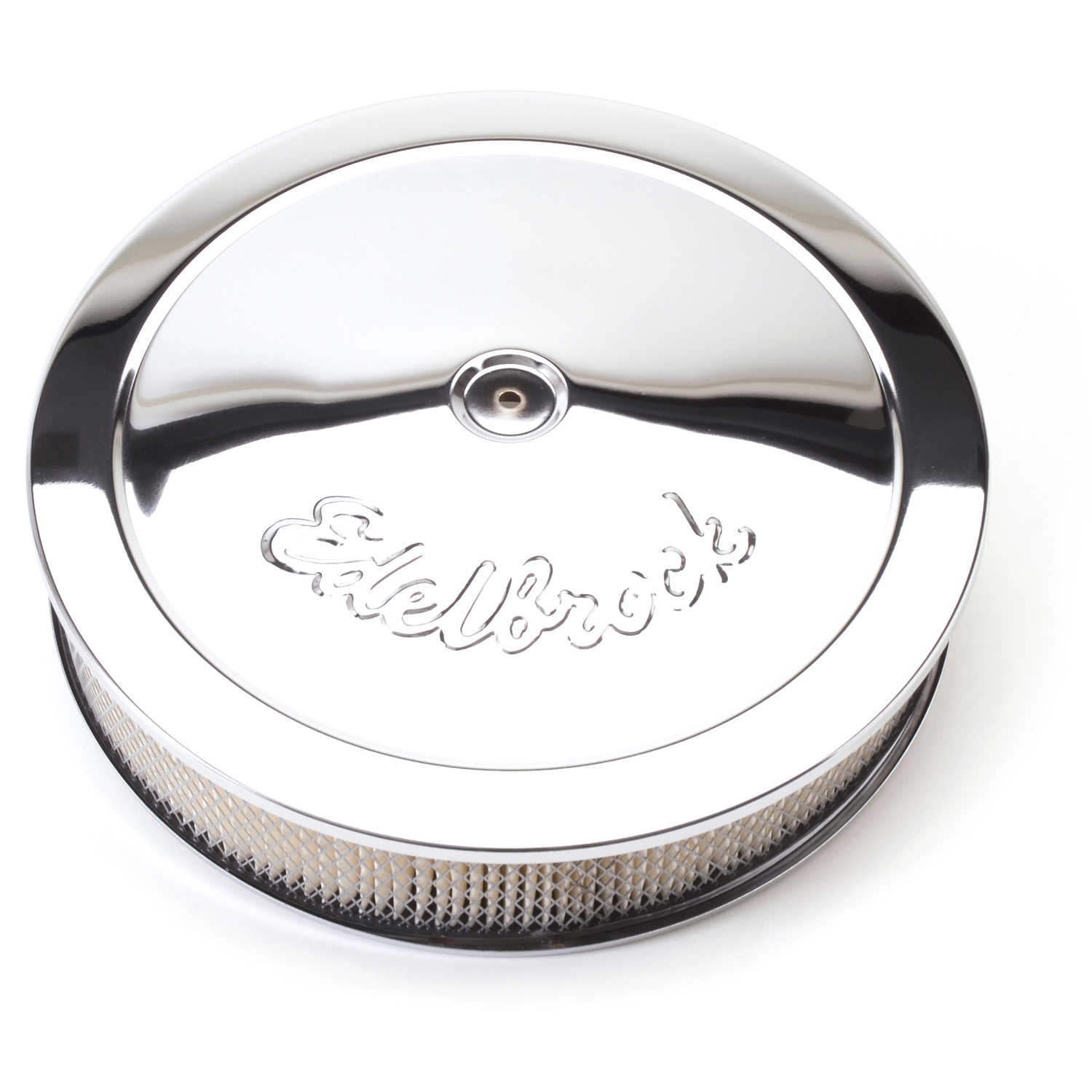

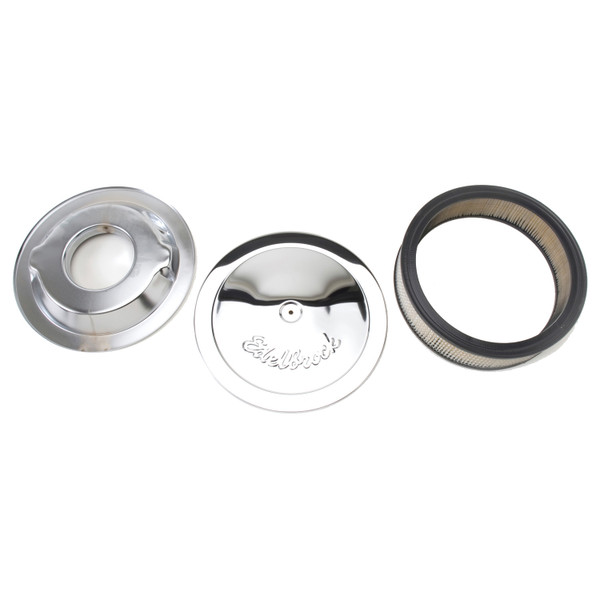

Edelbrock triple chrome-plated round air cleaner works with all popular 5-1/8" diameter carburetors (Performer Series, Thunder Series AVS, Holley, Thermo-Quad, Quadra jet and Carter AFB). Edelbrock 10" and 14" air filter models have knock-outs in the air cleaner base for use with Edelbrock crank case ventilation adapter #1205 (sold separately). Heights of air cleaners are measured from the gasket flange to the top of the supplied retaining nut. Dimensions are accurate within 1/8".
Installation Instructions
Base Style: Dropped
Base Dropped Distance (in.): 0.625
Air Cleaner Shape: Round
Air Cleaner Size: 14 in. diameter
Air Cleaner Top Material: Steel
Color: Chrome
Coating Type: Plated
Finish: Chrome
Filter Height (in.): 3.000 in.
Net Height from Carb Flange (in.): 3.750
Air Cleaner Filter: White paper
Nut Included: Yes
Air Cleaner Nut Style: Zinc plated wing nut
Notes: Fits all Edelbrock square bore, Q-jet carburetors, and Holley 4150 and 4160 style carburetors. Air cleaner has provisions on the base to clear the float adjustments.
