#SAVETHEFULLSIZEJEEP
A Portion Of The Proceeds From Your Purchase Supports The Development & Reproduction Of High Quality 1963-1991 Restoration Parts.
| Advertised Exhaust Duration | 270 |
| Advertised Intake Duration | 270 |
| Applications | Fits 4.8, 5.3, 5.7, 6.0, 6.2 and 7.0 Liter LS1, LS2, LS3, LS4, LS6, LS7 plus SUV and Truck Engines (Grinds are specific to displacement and cylinder head design) |
| Assembly Lubricant Included | No |
| Basic Operating RPM Range | 1,800-6,500 |
| C.A.R.B. E.O. Number | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | Yes |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason | No impact on pollution output of vehicle. |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam Type | Hydraulic Roller |
| Camshaft Gear Attachment | 3-Bolt |
| Camshaft Material | Billet Steel |
| Camshaft Series | FSL |

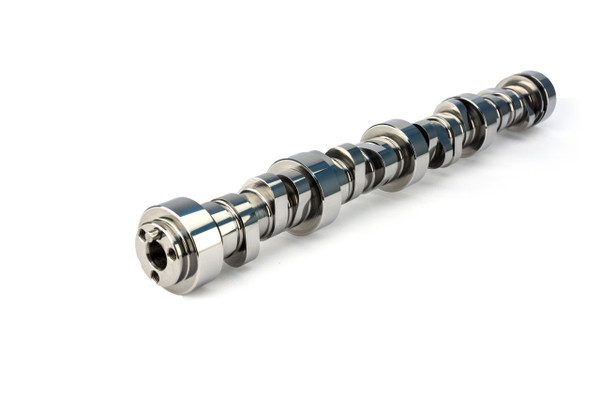

| Description | First 50-state legal grind for the GM Gen III LS1/LS3 three-bolt family of engines. Drop-in with stock components and tune can produce 30 to 90 HP increase in peak |
| Engine Family | GM LS GEN III/IV 3-Bolt 8 Cylinder (1997-2015) |
| Exhaust Duration at .050 inch Lift | 218 |
| Exhaust Valve Lift | 0.541 |
| Grind Number | LS3LX270 |
| Intake Duration at .050 Inch Lift | 210 |
| Intake Valve Lift | 0.57 |
| Lifter Type | Hydraulic Roller |
| Lifters Included | No |
| Lobe Separation | 118 |
| Valve Springs Required | No |
