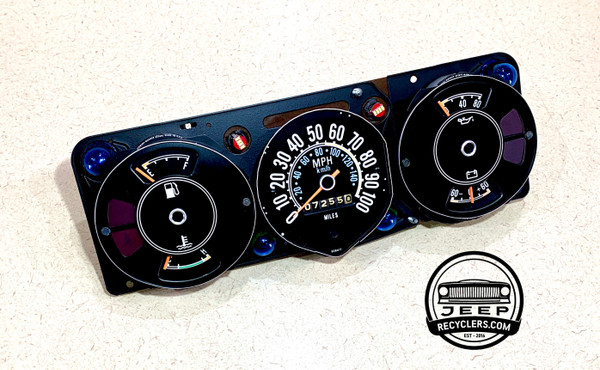

Full Size Jeep 1974-1985 Cherokee SJ, Wagoneer ,J-Truck, J-10, J-20, FSJ Restored Instrument Gauge Cluster W/LED's &  NEW Gunstock Vinyl Aluminum Backed Cover Plate
click to zoom in

Full Size Jeep 1974-1985 Cherokee SJ, Wagoneer ,J-Truck, J-10, J-20, FSJ Restored Instrument Gauge Cluster W/LED's &  NEW Gunstock Vinyl Aluminum Backed Cover Plate

(No reviews yet) Write a Review
Weight:
0.00 LBS
$1,830.00 - $1,850.00

#SAVETHEFULLSIZEJEEP

A Portion Of The Proceeds From Your Purchase Supports The Development & Reproduction Of High Quality 1963-1991 Restoration Parts.

Full Size Jeep 1974-1985 Cherokee SJ, Wagoneer ,J-Truck, J-10, J-20, FSJ Restored Instrument Gauge Cluster W/LED's &  NEW Gunstock Vinyl Aluminum Backed Cover Plate

Full Size Jeep 1974-1985 Cherokee SJ, Wagoneer ,J-Truck, J-10, J-20, FSJ Restored Instrument Gauge Cluster W/LED's &  NEW Gunstock Vinyl Aluminum Backed Cover Plate

$1,830.00 - $1,850.00
Choose Option

Full Size Jeep 1974-1985 Cherokee SJ, Wagoneer ,J-Truck, J-10, J-20, FSJ Restored Instrument Gauge Cluster W/LED's &  NEW Gunstock Vinyl Aluminum Backed Cover Plate

$1,830.00 - $1,850.00
✕

video gallery

Description

Full Size Jeep 1974-1985 Cherokee SJ, Wagoneer,J-Truck, J-10, J-20, FSJ Restored Instrument Gauge Cluster W/LED's &  NEW Gunstock Vinyl Aluminum Backed Cover Plate

12 Month Unlimited Mile Warranty

***Please include your current Mileage, and Speedometer Preference. We are not able to zero out/list all zero’s on Odometer unless a complete Frame Off restoration is performed. If a Frame Off Restoration was performed and you would like all zero’s we will need a signed document which we will provide ***

Core Return Policy: If we receive your Uncracked/ Rebuildable cluster within 30 days we will refund you $125

***Free Shipping Contential US***

International Shipping Available. Please Reach Out For A Quote. We Receive an 80% discount on International shipping

Fits:

  • 1973-1983 Wagoneer
  • 1974-1984 J-Series Truck
  • 1974-1983 Cherokee SJ

Restoration Process:

Cluster Housing Clean & Repair

  • Completely Striped of all Parts to bare housing
  • First Cleaning performed by Snap-On Industrial Parts Washer
  • All Stickers and Old Over lay’s are then removed
  • Second Cleaning is Performed with a Glass Bead media cabinet. This process removed original paint as well as any debris. This is the only true way to check structural integrity.
  • Housings are then straightened using a special jig we created. Housings tend to warp over time.
  • We then repair any cracks/ integrity issues with our Snap-On Plastic Welder. Repairing any cracks and filling any open spaces.

Cluster Housing Paint

  • A small amount of body filler is applied to perfectly straight lines followed by hand sanding/ filing to perfection.
  • Housings are then Sprayed with high quality Primer
  • Followed with High quality Silver
  • We now tape off the lines we want the Silver to stay.
  • High quality Black Paint is now sprayed
  • Lastly is Clear coat to protect everything for years to come.
  • New Overlays are then hand filed for the perfect fit.

Cluster Lenses & Vinyl Decals

  • Stock Lenses are replaced with Water Jet cut Lexan lenses (These lenses are much more illuminating)
  • JeepRecyclers.com produces high quality reproduction decals. Our high-quality vinyl decals are the perfect finishing touch for your restored instrument gauge cluster. Made with premium materials, our decals are designed to withstand the test of time and give your cluster a professional, polished look.

 HVAC Heater Controls

  • HVAC controls are completely disassembled.
  • Media cleaned removing all paint/ contaminants.
  • Followed by high quality primer and Black paint to match the rest of the cluster.
  • HVAC vacuum controls are separated and resurfaced to ensure proper operation.
  • HVAC buttons are glass Media Cleaned removing all paint Followed by Primer and Chrome Paint to match OEM
  • New Springs and spring damper are installed at final assembly.

Fan Control Switch Rebuild For AMC Era Clusters

  • The Fan Speed Switch is disassembled tested & and repaired
  • The Fan Speed Knob is Chrome. We polish to a mirror shine
  • The Fan Speed rear cover is media cleaned and painted with high quality black paint

Mother / Circuit Board & Gauges (We now Replace the Mother Boards With New Reproduction)

  • The Mother Board and Gauges (Fuel, Temperature, Speedometer, Oil Pressure, Amp) are completely disassembled
  • The Mother board metal backers are media cleaned Primed with high quality Primer followed by high quality black paint
  • Each gauge is disassembled cleaned tested to meet OEM specs
  • Light Bulb are replaced with New LED, or Incandescent 194
  • Mother Boards are replaced with new reproduction boards

WARNING Gauge Clusters Are Restored To Factory/ OEM. If you are running a modern Alternator it is HIGHLY recommended you disconnect your AMP meter. Modern vehicles use Voltmeters which are much safer.  McDaniel Motor Co./ Jeep Recyclers will not be held liable if you decide use the AMP meter

Why Amp Meters in FSJs Can Cause a Fire:

  1. Full Current Flow: The ammeter in FSJs is wired in series with the electrical system. This means the primary current of the Jeep flows directly through it. Given the rugged usage and sometimes demanding electrical needs of these vehicles, the potential for overload and overheating is significant.

  2. Aging Wiring and Connections: With vehicles from this era, wear and tear is a given. The FSJ's wiring and connections associated with the ammeter can deteriorate, corrode, or loosen over time. Since the ammeter handles the Jeep's total electrical load, a degraded connection can result in high resistance. This high resistance can generate excessive heat, which, combined with the old wiring insulation typical of this era, raises the risk of a fire.

  3. Limited Fuse Protection: The ammeters in these FSJs typically lacked adequate fuse protection. In the event of a short or malfunction, there's no quick-acting fuse to cut off the flow, allowing potential overheating situations.

Benefits of Converting to a Volt Meter in FSJs:

  1. Enhanced Safety: The primary advantage of a voltmeter in an FSJ is safety. Since voltmeters are connected in parallel with the circuit they're measuring, they're not handling the Jeep's primary current, thereby minimizing the risk of overheating and potential fire hazards.

  2. Simplified Wiring: For FSJ owners, converting to a voltmeter can simplify the wiring process. You don't have to maneuver the Jeep's primary electrical wires through the gauge, which reduces potential failure points.

  3. Immediate Feedback: A voltmeter offers FSJ drivers a direct insight into the system voltage. Especially in off-road or challenging terrains where these Jeeps often find themselves, being informed about the health of the charging system is vital. Abnormal voltage readings can indicate issues with components common to FSJs, like the alternator or the battery.

  4.

In wrapping up, for FSJ enthusiasts, making the switch from an ammeter to a voltmeter isn't just about modernizing a component; it's about enhancing the safety and reliability of a beloved classic. Given the unique demands placed on Full Size Jeeps, it's a conversion that offers both peace of mind and practical advantages.







Shipping & Returns

To submit a return or exchange request, please go to our Contact Us page to submit order information. Photos of any damaged products may be requested and required to process any full or partial refund. If approved, we will provide you with an RMA number along with a return label for shipping.

Parts returned that are not defective, are subject to a 25% restocking charge. JeepRecyclers.com/McDaniel Motor Co. is NOT responsible for any parts that have been altered, modified, disassembled, or damaged by misuse or an accident subsequent to the parts purchase.

Reconditioned parts come with a minimum warranty of 90 days, unless otherwise stated (Refer to product listing for warranty duration). The warranty is void if the parts are not returned in the same condition in which they are sold. Warranties for aftermarket parts are covered by the manufacturer.

What Are My Shipping Fees?

For orders delivered within the continental US where reason for return isn't a result of a JeepRecyclers.com/McDaniel Motor Co. error, the cost of the initial shipping charge and a return fee will be deducted from your refund. A prepaid shipping label(s) will be provided. The flat fee for each item being returned can be found in the chart below:

Retail cost of the item Per Item Return Fee
Less than $25.00 $3.75
From $25.00-$49.99 $5.75
From $50.00-$99.99 $7.75
More than $100.00 $9.75
