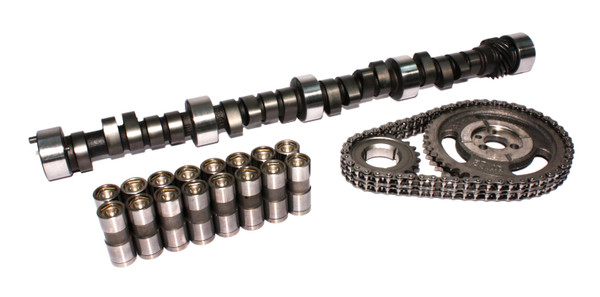

High Energy Hydraulic Flat Lifter Set for Chevrolet Small and Big Block. - SK12-249-4

(No reviews yet) Write a Review
UPC:
00036584068679
Weight:
17.00 LBS
$451.27

#SAVETHEFULLSIZEJEEP

A Portion Of The Proceeds From Your Purchase Supports The Development & Reproduction Of High Quality 1963-1991 Restoration Parts.

High Energy Hydraulic Flat Lifter Set for Chevrolet Small and Big Block. - SK12-249-4

High Energy Hydraulic Flat Lifter Set for Chevrolet Small and Big Block. - SK12-249-4

$451.27
SK-KIT - Small Kit Includes: Camshaft, Lifters, Timing Chain Set, Assembly Lube, Decals and Instructions.

Installation Instructions

Installation Instructions



This Part Fits:

YearMakeModelSubmodel
1968-1971JeepJ-100Base
1969-1971JeepJ-2500Base
1969-1971JeepJ-2600Base
1969-1970JeepJ-2700Base
1969-1970JeepJ-3500Base
1969-1970JeepJ-3600Base
1969-1970JeepJ-3700Base
1969-1971JeepJ-3800Base
1968-1971JeepWagoneerBase


Advertised Exhaust Duration260
Advertised Intake Duration249
ApplicationsFits Chevrolet GEN 1 Small Blocks including the 262, 265, 267, 283, 302, 305, 307, 327, 350 and 400. Does not fit LT1/LT4, or factory roller Small Blocks built from 1985 and newer. GM gradually added roller camshafts to 305's and 350's from the mid 80's forward. Camaros/Firebirds/Corvettes received the roller cams early, but many trucks and SUV's had flat tappet cams until the mid 90's. Remove the intake or timing cover to confirm whether the block is a factory roller or flat tappet. Does not fit the LS1, LS2, LS3 or any LS-based 4.8, 5.3, 5.7, 6.0 and 6.2. 1955-1957 Chevrolet 265 engines require a groove on the 5th cam journal for oiling. Contact us for more information.
Assembly Lubricant IncludedYes
Basic Operating RPM Range1,000-5,000
C.A.R.B. E.O. NumberN/A
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?No
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?Yes, but must be a race/competition only vehicle.
C.A.R.B. Exemption ReasonN/A
California Proposition 65WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
Cam TypeHydraulic Flat Tappet
Camshaft Gear Attachment3-Bolt
Camshaft MaterialCast Iron
Camshaft SeriesXtreme Energy Computer Controlled
DescriptionGreat in throttle body, crossfire or carbureted engine and 305 TPI.
Engine FamilyChevrolet 262-400 c.i. 8 Cylinder (1958-1998)
Exhaust Duration at .050 inch Lift212
Exhaust Valve Lift0.444
Gaskets IncludedNo
Intake Duration at .050 Inch Lift206
Intake Valve Lift0.434
Kit TypeSK-Kit - Small Kit
Lifter TypeHydraulic Flat Tappet
Lifters IncludedYes
Lobe Separation112
Locks IncludedNo
Pushrods IncludedNo
Retainers IncludedNo
Timing Chain and Gears IncludedYes
UsageStreet/Performance
Valve Springs RequiredYes
Valve Stem Seals IncludedNo
