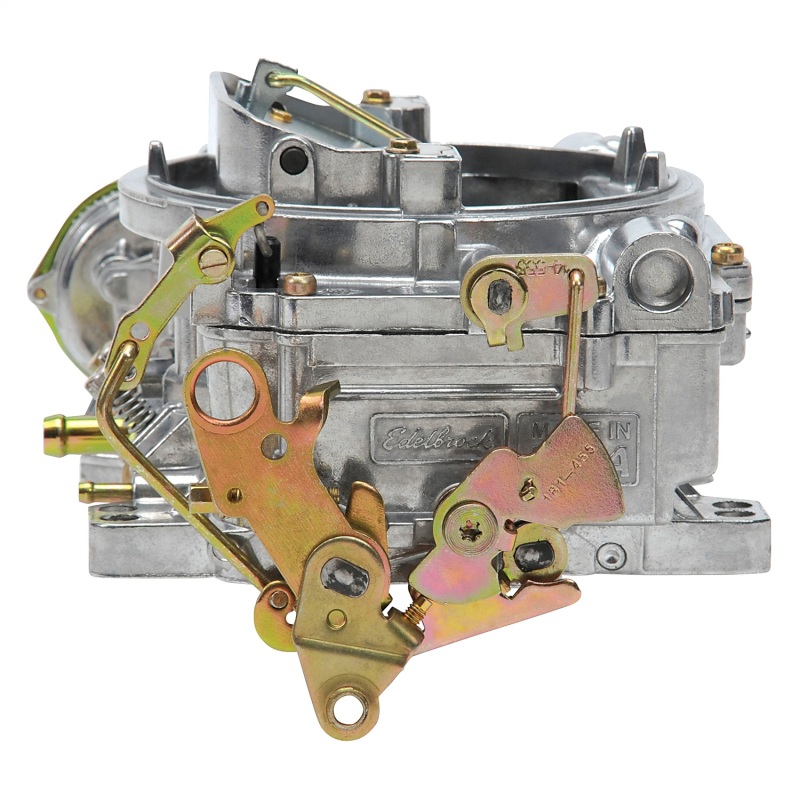

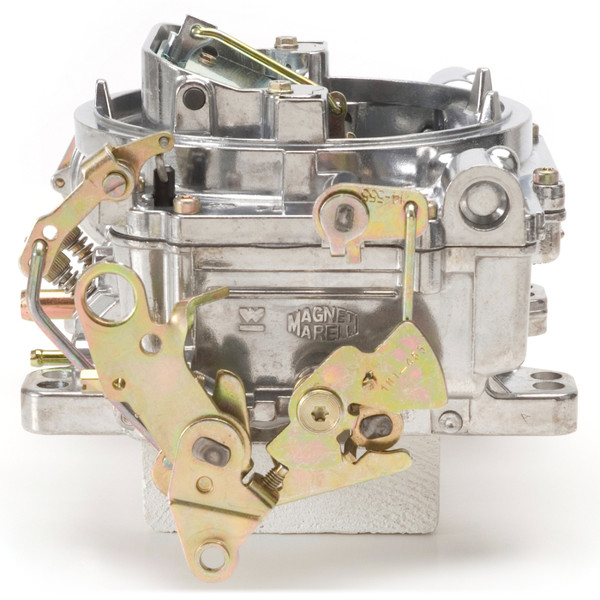

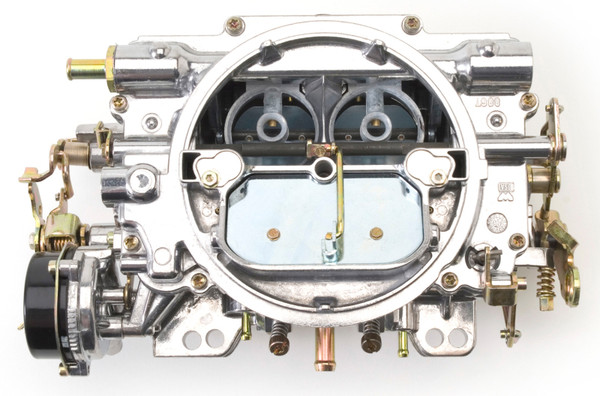

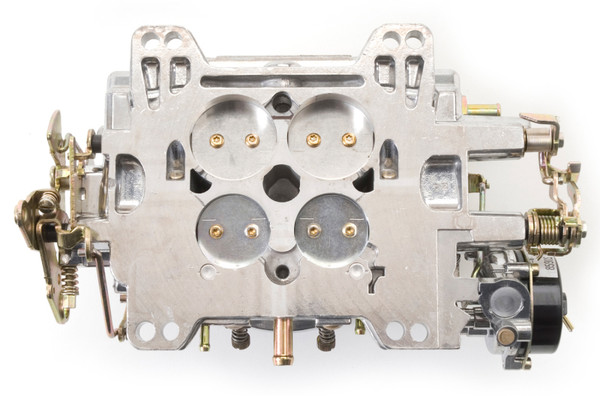

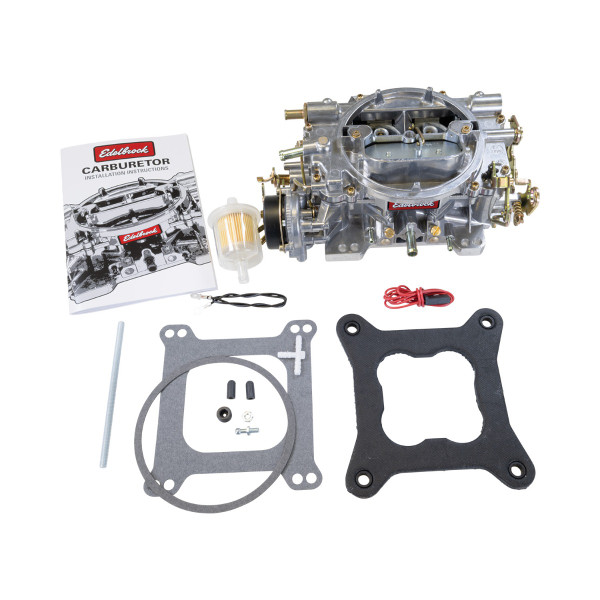

This Edelbrock Performer 600 CFM 4-Barrel Carburetor with EGR is a dependable street-performance upgrade for Full Size Jeeps with AMC V8 engines using a compatible square-bore 4-barrel intake manifold.
The 600 CFM rating makes this carburetor a strong choice for stock or mildly built AMC V8 engines where throttle response, drivability, reliability, and consistent street performance are the priorities. It is a practical upgrade for Wagoneer, Cherokee, Grand Wagoneer, and J-Series owners looking for more responsive performance than a tired or worn factory carburetor setup.
The Performer Series carburetor is designed to hold a consistent tune and provide smooth fuel delivery for daily driving, weekend use, and general street performance. Its metering rod design allows smooth transition between fuel circuits, and because it does not use traditional power valves, it is not prone to power valve failure from engine backfires.
This carburetor features an electric choke, satin finish, lightweight aluminum body, and a two-piece design that helps resist warping. The simple bowl design and rear-pivot floats contribute to reliable operation, while the factory calibration makes it a strong bolt-on option when used with the proper intake, linkage, fuel line, and air cleaner setup.
This carburetor is commonly paired with an Edelbrock Performer-style square-bore intake manifold and is well suited for stock or mildly built AMC engines.
It is not a direct bolt-on replacement for factory 2-barrel intake setups unless the intake manifold has been upgraded.
Features
- 600 CFM airflow rating
- 4-barrel carburetor
- Electric choke
- Satin finish
- Square flange design
- Aluminum body construction
- Two-piece body design
- Factory tuned for consistent street performance
- Metering rod fuel control design
- No power valves to blow out from backfires
- Designed to hold a consistent tune
- Compatible with commercially available gasoline and E10 blended fuels
- Gasket included
Fits
Specifications
- Series: Performer
- Flange Type: Square
- Material: Aluminum
- Finish: Satin
- Marine Approved: No
- Primary Bore Diameter: 1.44"
- Secondary Bore Diameter: 1.69"
- Primary Jet Diameter: 0.098"
- Secondary Jet Diameter: 0.095"
- Metering Rod Size: 0.073" x 0.047"
- Main Venturi Diameter: 1.19"
- Body Height: 3.25"
- Step-Up Spring: 5" Hg Orange
- Gasket Included: Yes
