Comp Cams Stock Valve Springs

(No reviews yet) Write a Review
UPC:
036584270614
Condition:
New
$122.71

#SAVETHEFULLSIZEJEEP

A Portion Of The Proceeds From Your Purchase Supports The Development & Reproduction Of High Quality 1963-1991 Restoration Parts.

Comp Cams Stock Valve Springs

Comp Cams Stock Valve Springs

$122.71

These COMP Cams Single Outer Valve Springs are designed for performance valve spring upgrades on AMC V8 engines. They are a good option when building or refreshing the valvetrain with compatible cams, retainers, locks, and valve seals.

Valve springs are a critical part of the valvetrain. The correct spring helps control valve motion, prevent valve float, and support the camshaft’s intended RPM range. These springs are sold as a complete set of 16 and include an internal damper spring.

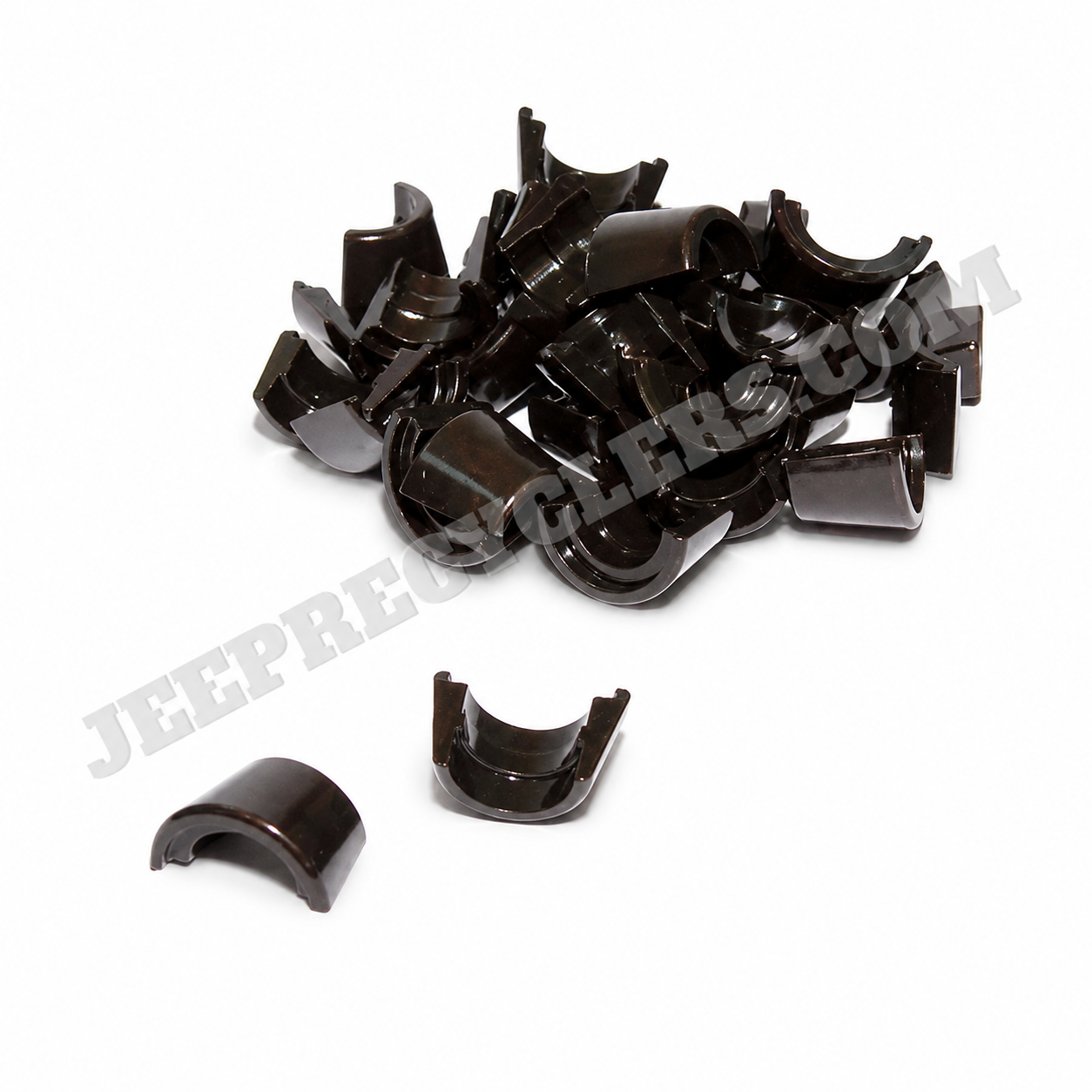

Retainers, locks, and valve stem seals are not included and must be matched to the spring and valve setup being used.

Fits the following with AMC V8 Engines:

  • 1972-1983 Wagoneer
  • 1974-1983 Cherokee
  • 1984-1991 Grand Wagoneer
  • 1972-1988 J-Series Trucks

Fitment Notes

These are not a direct stock replacement spring by themselves. They must be used with compatible retainers and locks.

Valve Spring Style: Standard
Number of Springs Per Valve: Single
Maximum Valve Lift (in.): 0.640 in.
Retainers Included: No
Outside Diameter of Outer Spring (in.): 1.464 in.
Coil Bind Height (in.): 1.200 in.
Damper Spring Included:Yes
Spring Rate (lbs./in.): 241 lbs./in.
Inside Diameter of Outer Spring (in.): 1.080 in.
Locks Included: No
Valve Stem Seals Included: No
Valve Springs Coated: No
Remanufactured: No
Quantity: Sold as a set of 16.
